multi-channel testing system

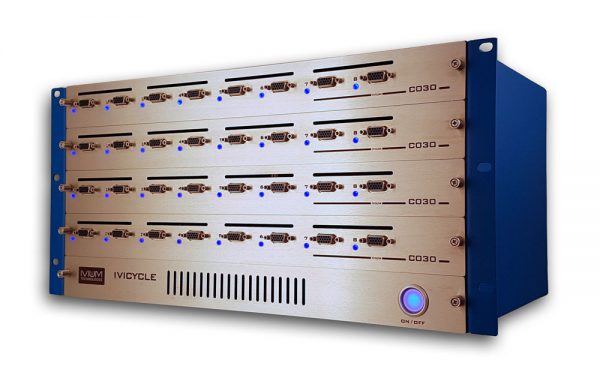

IviCycle C030

Multi-channel battery test system

Each channel: ±30mA/±10V

Optional FRA/EIS: 10µHz-20kHz on each channel for simultaneous testing

19" rack-mountable housing

Low cost-per-channel battery test solution

Buy from your local reseller (US):

Nanoscience Instruments

Request information

Product description

Dedicated battery test system

The IviCycle C030 is designed to be your perfect partner for high channel-count battery applications. The IviCycle offers a low cost-per-channel, high volume testing solution and extensive data storage capability.

Complete solution

The IviCycle is a multi-channel test system with optional impedance capability. The channels are divided over 4 modules. It is possible to mix and match different IviCycle modules to create the desired number of channels with varying compliance.

The C030 modules each have 8 channels of ±30mA/±10V compliance. The modules are available either as a DC version (no EIS), or as an EIS version with impedance capability on each of the channels. This means that simultaneous/parallel impedance measurements are possible on all channels. The IviCycle has an integrated DataSecure module that stores all data for each channel completely independently from the computer. This ensures that if there is a communication loss or a computer crash/update, the measurement will continue and data will not be lost. This provides peace-of-mind for long duration, high throughput testing. The IviCycle unit is built into a 19inch rack mountable housing for easy incorporation into existing storage racks, or as a stand-alone bench-top multi-channel system.

Safety

The maximum current or potential of the instrument can be defined by the operator. Thus valuable samples may be protected, and unsafe situations prevented.

Data security & Connection

The IviCycle is equipped with an integrated DataSecure module:

  • Data is stored on board independent of the computer.
  • Connection of multiple PCs is possible

Software

The IviCycle is controlled via Ivium’s own software, IviumSoft. This versatile, yet intuitive software, allows instrument control, data management and analysis, etc. The IviCycle can also be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of software is included as standard with each instrument.

  • Control of separate channels individually
  • All channels simultaneously
  • Synchronous start
  • Data from different channels plotted individually or in 1 single graph
Read the full description

Specifications

System performance
Current compliance
±30mA
Maximum applied voltage
±10V
Electrode connections
4; WE, CE, RE, S with 4mm banana plugs
Potentiostat bandwidth
>500kHz
Stability settings
High Speed, Standard and High Stability
Signal acquisition
Dual channel 18bit ADC, 100,000 samples/s
Channel combination
No
Potentiostat
Applied potential range
±10V, 0.08mV res.
Applied potential accuracy
0.2% or 1mV
Current ranges
±10nA to ±100mA
Measured current resolution
0.003% of current range, minimum 0.3pA
Measured current accuracy
20pA + 0.025% of FSR
Galvanostat
Applied current resolution
0.008% of applied current range
Applied current accuracy
0.2%
Galvanostatic current ranges
±10µA to ±100mA
Potential ranges
±1mV, ±4mV, ±10mV, ±40mV, ±100mV, ±400mV, ±1V, ±4V, ±10V
Measured potential resolution
0.0008% of potential range, minimum 7nV
Measured potential accuracy
0.2% or 1mV
Impedance Analyser
Frequency range
10µHz to 20kHz
Amplitude
0.15mV to 1.0V, or 0.03% to 100% of current range
Electrometer
Input impedance
>1000Gohm //<20pF
Input bias current
<20pA
Bandwidth
>5MHz
Peripheral connections
Analog in/out
±10V input only, 16bit resolution, bandwidth 40kHz
Environment
Power requirements
100-240V, 50-60Hz, 120VA
Interfacing
USB/LAN (Ethernet)
Size (w x d x h)
44 x 26 x 22cm
Weight
12.5kg
PC requirements
Windows 8/10/11, with free USB port
Integrated DataSecure
Data acquisition time: 2ms minimum, Stored no. of data points: 20M each channel
Specifications subject to change, Ivium Technologies ©2024

Product gallery

IviCycle rack1
IviCycle rack4
IviCycle rack3
IviCycle rack2
